HPX 30
Monobloc heat pump, 30 kW
- High COP score: >5
- Energy class A***
- Air/water heat pump
- Environment friendly refrigerant
- DC-fan
Description

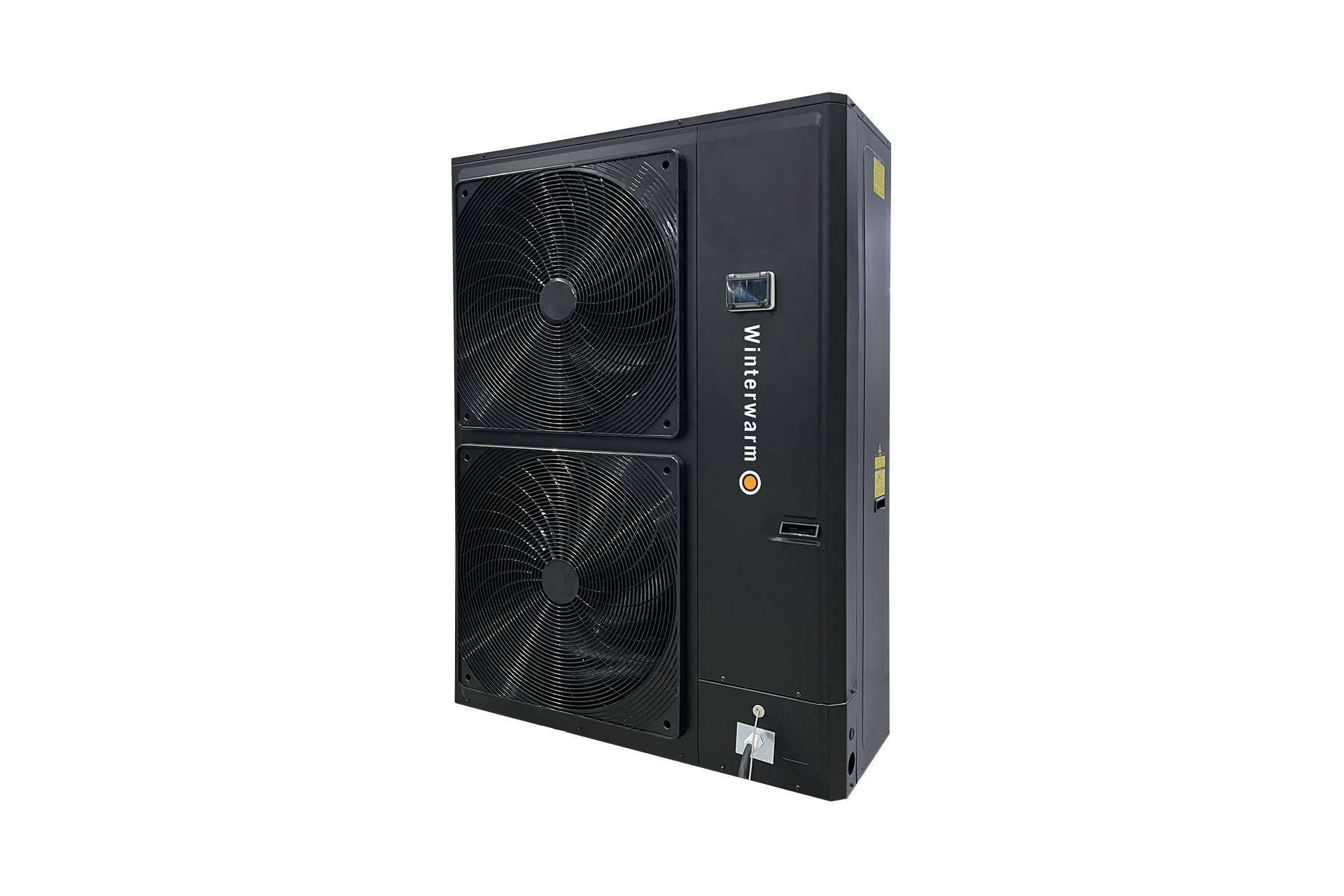

The Winterwarm HPX 30 is a heat pump with a heating capacity of 30 kW (at an outside temperature of 7° and a water temperature of 30°/35°C) and a cooling capacity of 31 kW (at an outside temperature of 35°C and a water temperature of 23°/18°C). The HPX 30 can be used in combination with the Qwikshift QSG 30+60 indoor unit, Winterwarm’s hybrid gas fired air heater, and with heat pump unit heaters such as the WWH-LT (heating and cooling) and the JET (heating).
Features
- Built-in circulation pump
- Internal expansion tank
- Refrigerant R32
- Modulating compressor
- Water circulation filter included
Technical features
| Nominal heating capacity at 7/35 °C according to EN 14511 | 30kW |
|---|---|
| COP at 7/35 °C according to EN 14511 | 4.35 |
| Cooling performance at 35/18 °C according to EN 14511 | 16.3kW - 31.2kW |
| Type of refrigerant | R32 |
| Refrigerant pre-charge | 5kg |
| Connection voltage | 400V - 400V |
| Number of phases | 3 |
| Frequency | 50 Hz |
| Weight | 287kg |
| Sound level (in operation) | 0dB(A) - 58dB(A) |
| External pressure system pump available at nominal flow | 4.8bar |
| Air temperature | -25°C - 35°C |
| Nominal volume flow rate output system | 1.43l/s |
| Degree of protection (IP) | IPX4 |
Images
Downloads
Accessories
Controls
Suspension
Other
Service parts
View our service parts for the HPX 30 (and earlier models) in the parts shop.
Parts shopHPX Heat pump
The Winterwarm HPX heat pump, to be applied in combination with a Qwikshift Hybrid Heater or the WWH-LT range.
