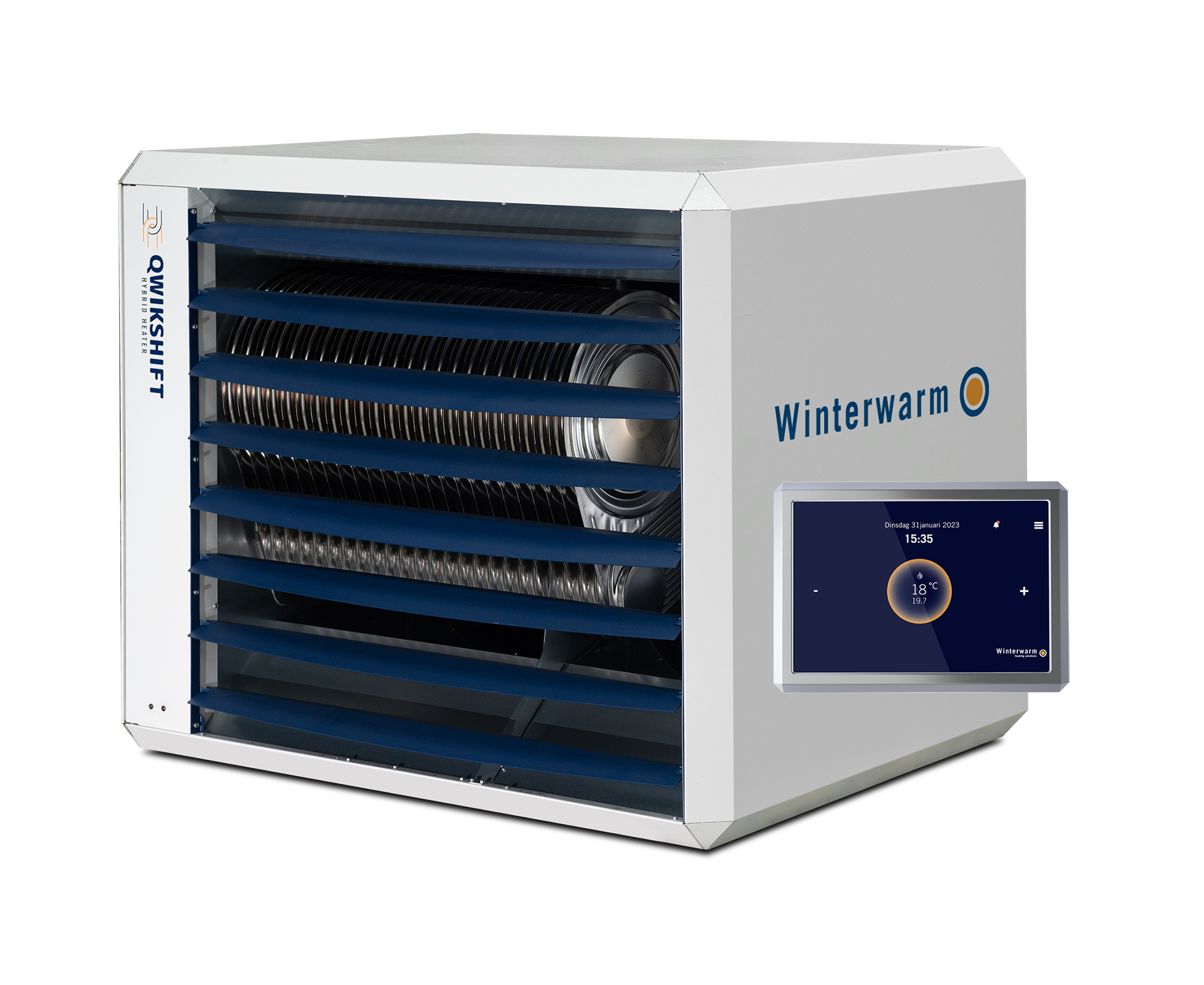

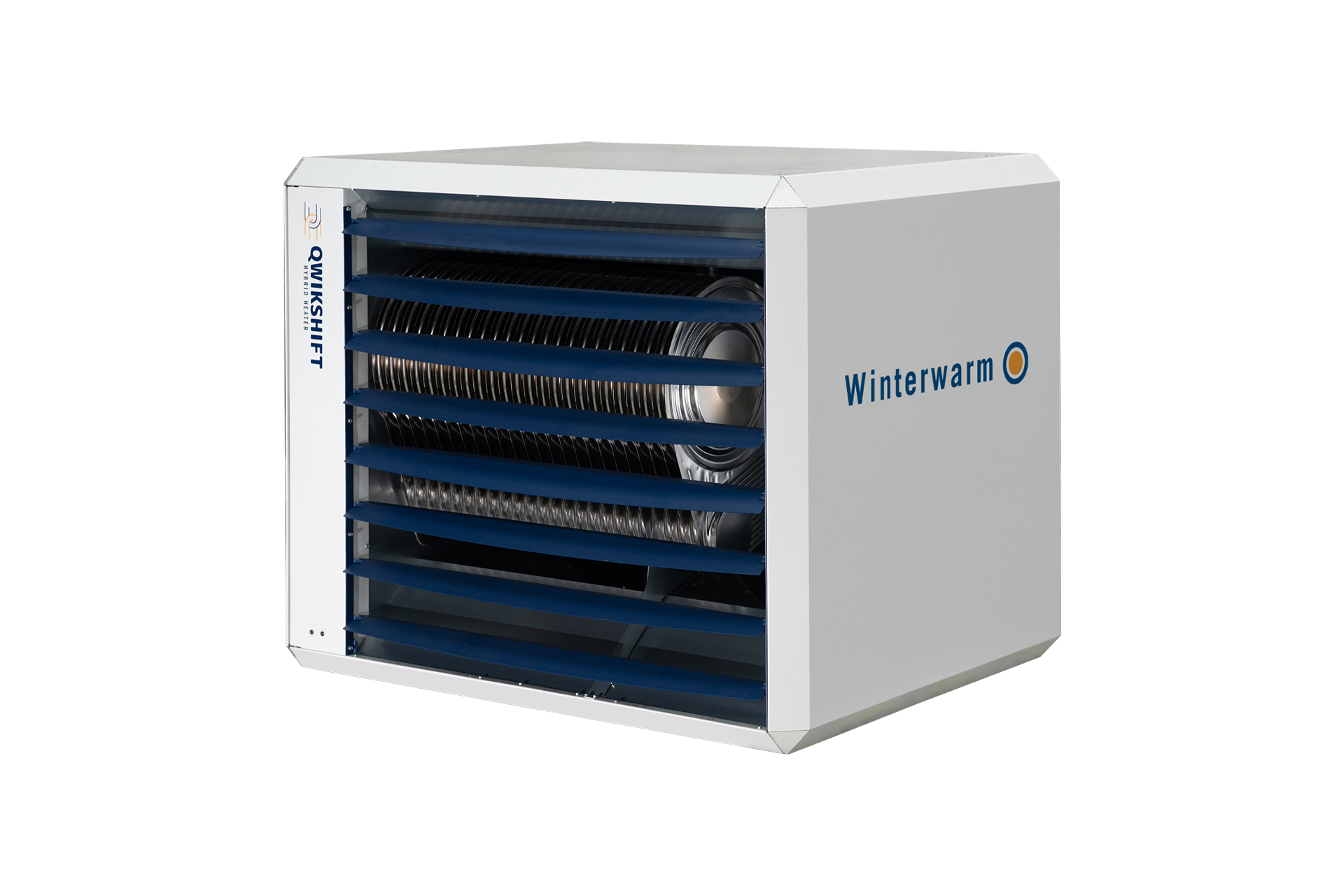

QSG 30 + 60
- Quick heating by booster
- Up to 60% lower energy consumption
- Hydrogen ready
- Heats and cools
- Up to 70% reduction of CO2 emissions
Technical features
| Total heating capacity | 90kW |
|---|---|
| Heating power gas heating | 58kW |
| Heat emission heat pump heat exchanger at 20 °C 35/30 | 30kW |
| Cooling capacity heat pump heat exchanger at 27 °C 12/17 | 31kW |
| Air volume | 2000m³/h - 12000m³/h |
| Max. throw horizontal | 30m |
| Modulating burner control | Yes |
| Supporting protocol for Modbus | Yes |
| Connection voltage | 230V - 230V |
| Nominal current | 7A |
| Supplementary electricity consumption in standby-mode (Psb) | 13W |
| Fuel connection | External thread |
| Connection heat pump | External thread |
| Nominal diameter connections heat pump | Other |
| Min. mounting height (horizontal air distribution) | 2.7m |
| Sound pressure level at height of 5 metres | 35dB(A) - 65dB(A) |
| Water content | 13.6l |
| Weight including filling | 217kg |
Images
Accessories
Controls
Suspension
Flue material

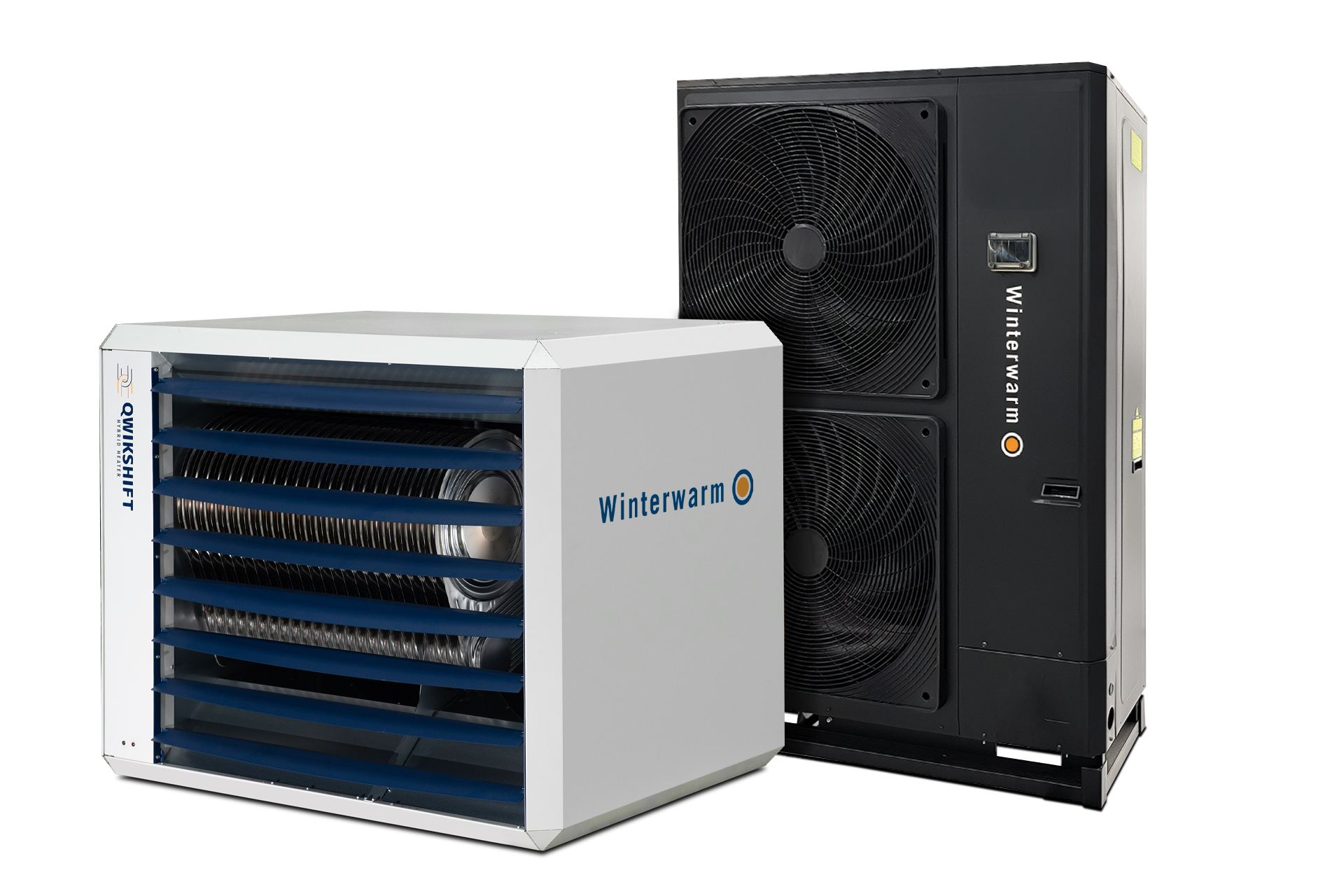

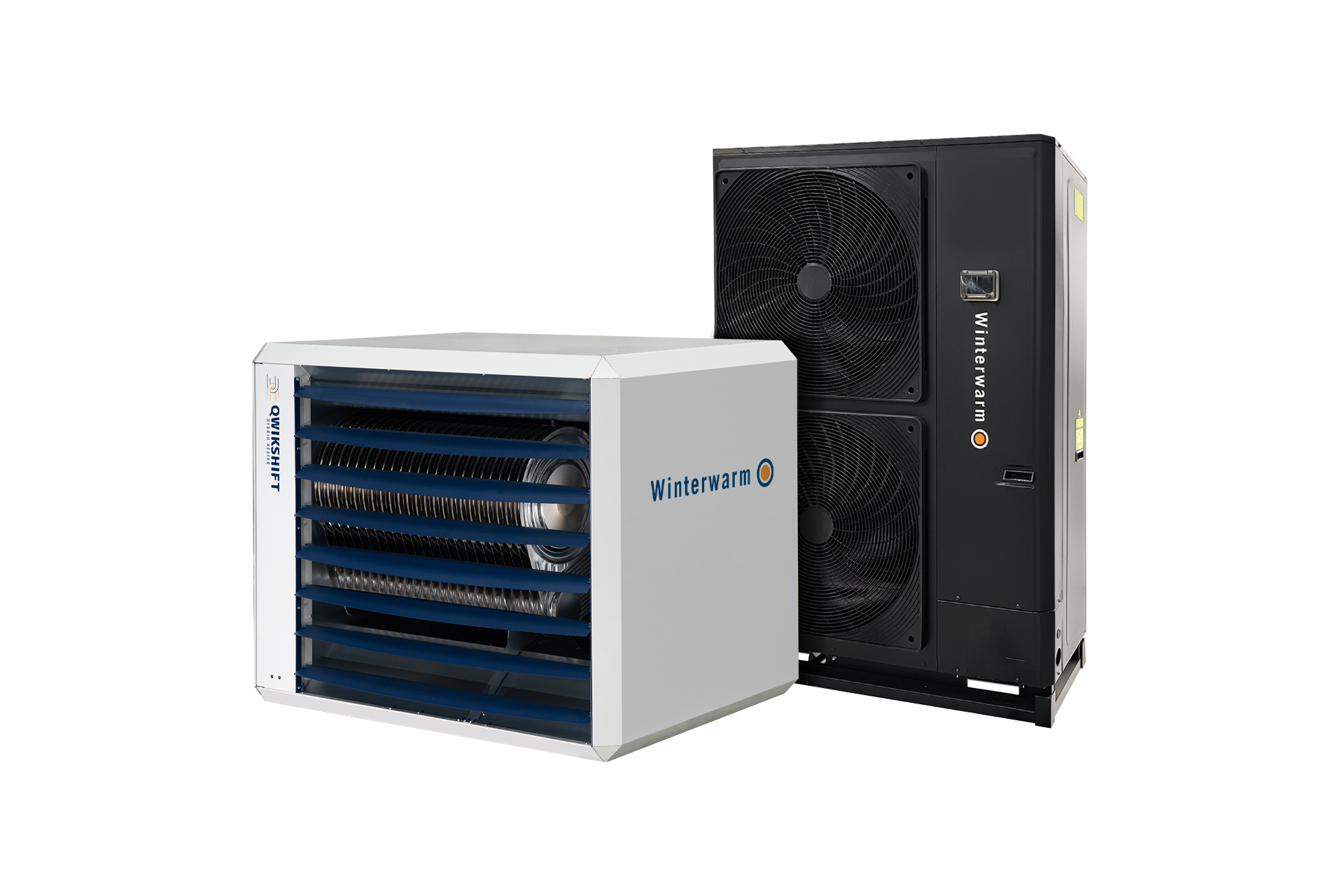

HPX 30
Service parts
View our service parts for the QSG 30 + 60 (and earlier models) in the parts shop.
Parts shopThe Qwikshift QSQ is a hybrid heater which combines a heat pump with a innovative gas fired booster and smart control.
