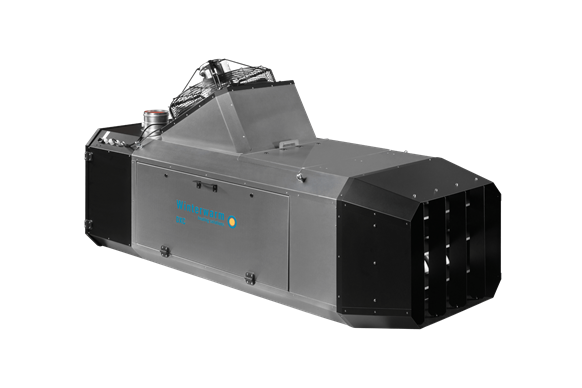

DXC 100
Indirect gas-fired heater, 100 kW
- Sealed combustion system
- No CO2 introduced into the poultry house
- Up to 25% energy savings
- Reliable design
- Reduced fire risk
Description
The DXC 100 is the largest capacity heater. With 4 x DXC 100, a poultry house of approximately 4,000 m2 can be efficiently heated. It has a closed combustion chamber which ensures a safe operation. For a good circulation of the air and low temperature differences in the farm we recommend also using DXF fans.
Features
- stainless steel casing
- robust tubular heatexchanger
- clear and simple readable display for service
- introduction of outside air by flexible SS-tube
- on/off control as standard
- modulating control possible
- 0-10 V. analogue input
- easy to clean
- installation on mobile stand or on chains
- natural gas or propane
- CE approved
Technical features
| Nominal power | 99.1kW |
|---|---|
| Nominal load lower value | 108kW |
| Efficiency | 91.8% |
| Air volume | 0m³/h - 10000m³/h |
| Max. throw horizontal | 50m |
| Supply voltage | 230V |
| Nominal current | 6.1A |
| Max. electric power input | 1400W |
| Max. sound level (at a distance of 4 metres) | 70dB(A) |
| Material heat exchanger | Stainless steel |
| Closed version | Yes |
| Burner controller high/low | No |
| Burner controller, modulating | Yes |
| Control signal on/off | Yes |
| Control signal 0-10 V | No |
| Fan type | Axial |
| Degree of protection (IP) | IPX4B |
| Height | 1080mm |
| Width | 815mm |
| Depth | 2100mm |
| Weight | 175kg |
| Outer pipe diameter combustion air | 130mm |
| Connection, fuel | External thread |
| Nominal diameter fuel | 3/4 inch (20) |
| Gas consumption low-calorific natural gas (G25) | 12.8m³/h |
| Gas consumption propane (G31) | 8.6kg/h |
Images
Accessories
Controls
Suspension
Other
Flue material
Service parts
View our service parts for the DXC 100 (and earlier models) in the parts shop.
Parts shopDXC Heaters
The Winterwarm DXC is a gas-fired warm air heater with room-sealed fresh air and flue exhaust system, specifically designed for poultry houses.
All Winterwarm DXC types
