WWH 245

LPHW warm air heater,39 kW

  • Several air discharge options
  • Simple to control
  • Long lifetime
  • Suitable for various locations
  • Low investment
WWH 245

LPHW warm air heater,39 kW

  • Several air discharge options
  • Simple to control
  • Long lifetime
  • Suitable for various locations
  • Low investment

Description

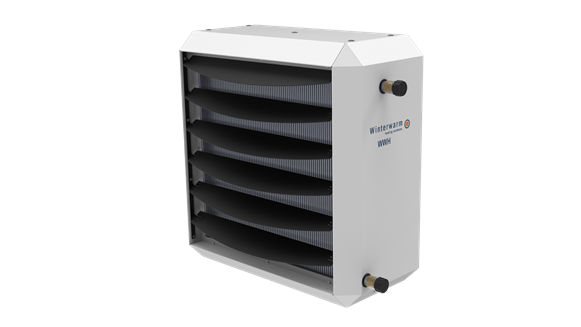

The WWH 245 is a compact water heater with a capacity of 38.7 kW at a water temperature of 90°/70°C. The heat exchanger is a combination of copper tubes and aluminium fins which ensures optimum heat transfer.

It can be applied in small buildings like shops, warehouses etc.

Features

  • horizontal or vertical air discharge
  • extra louvres available
  • 4-way or 6 way down flow plenum for suspended ceilings
  • 5-step switch regulates air volume (optional)
  • suitable for all water temperatures (not steam)

Technical features

Heat emission 0kW - 38.7kW
Air volume 0m³/h - 3450m³/h
Max. throw horizontal 19m
Max. throw vertical 6m
Connection voltage 230V - 230V
Number of phases 1
Nominal current 1.4A
Max. electric power input 326W
Adjustable fins on exhaust side Yes
Material heat exchanger Aluminium/copper
Fan type Axial
Sound pressure level at height of 5 metres 0dB(A) - 60dB(A)
Height 679mm
Width 679mm
Depth 425mm
Nominal diameter 1 inch (25)
Water-side resistance at dT 20 °C 5kPa
Max. operating pressure 500kPa
Water content 1.7l
Weight including filling 32kg

Images

Accessories

Aansturingen
Ophangingen
Overig
  • GA245WW-1
    4-Zijdig Plenum WWH 230...245 redesign
    Article number GA245WW-1
    More information
  • GA245VS-1
    Set verticale schoepen WWH 220...245 redesign
    Article number GA245VS-1
    More information

Service parts

View our service parts for the WWH 245 (and earlier models) in the parts shop.

Parts shop

Winterwarm WWH-series

The Winterwarm WWH range are LPHW heaters which, combined with any type of hot water system, can comfortably heat up any room.

All Winterwarm WWH types
